Instagram Channel Setup Guide

[ Registering and Linking a Megalive Studio Channel ]

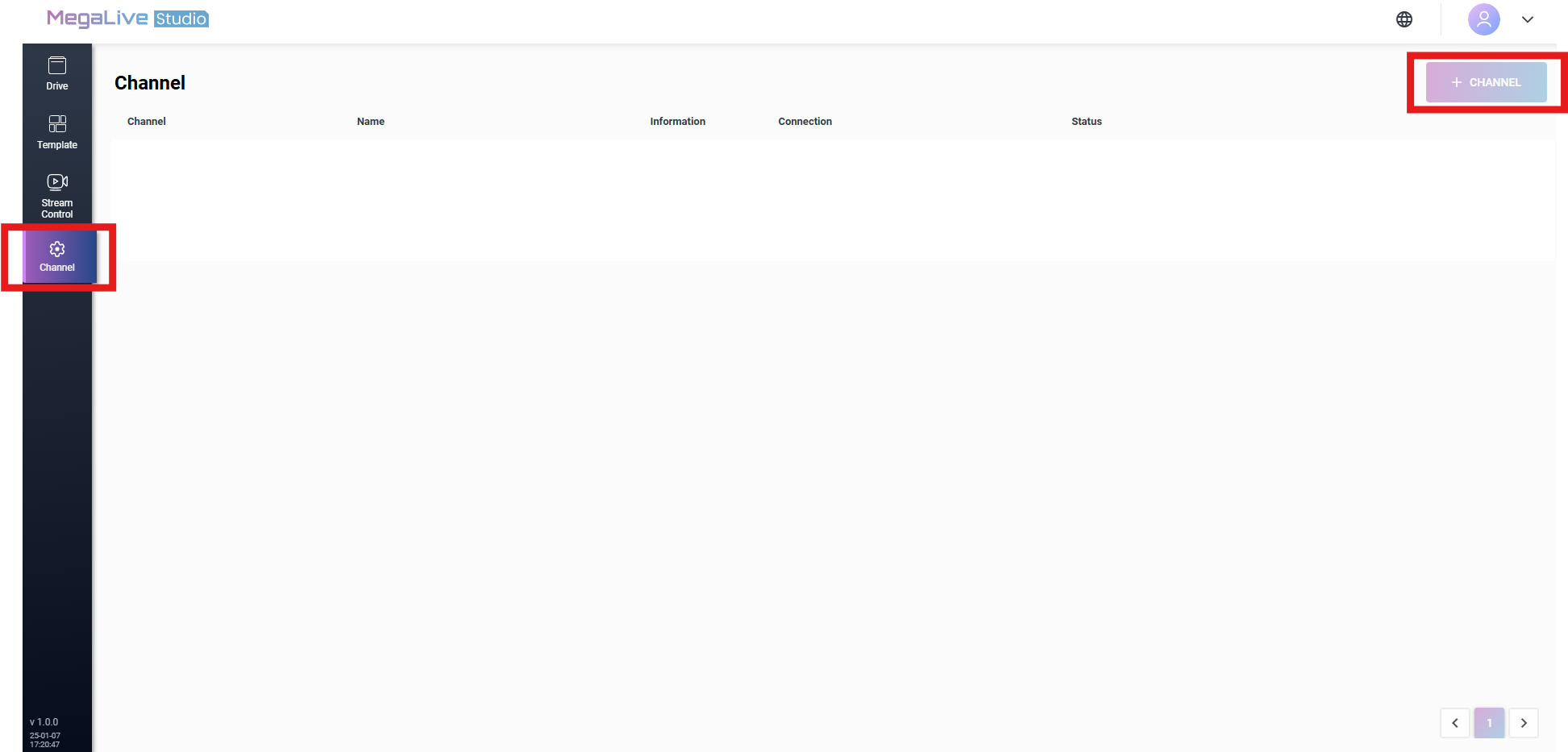

1. To register a streaming channel in Megalive Studio, click on the Channel button in the left-hand menu.
When the channel list appears, click the + Channel button in the top-right corner.

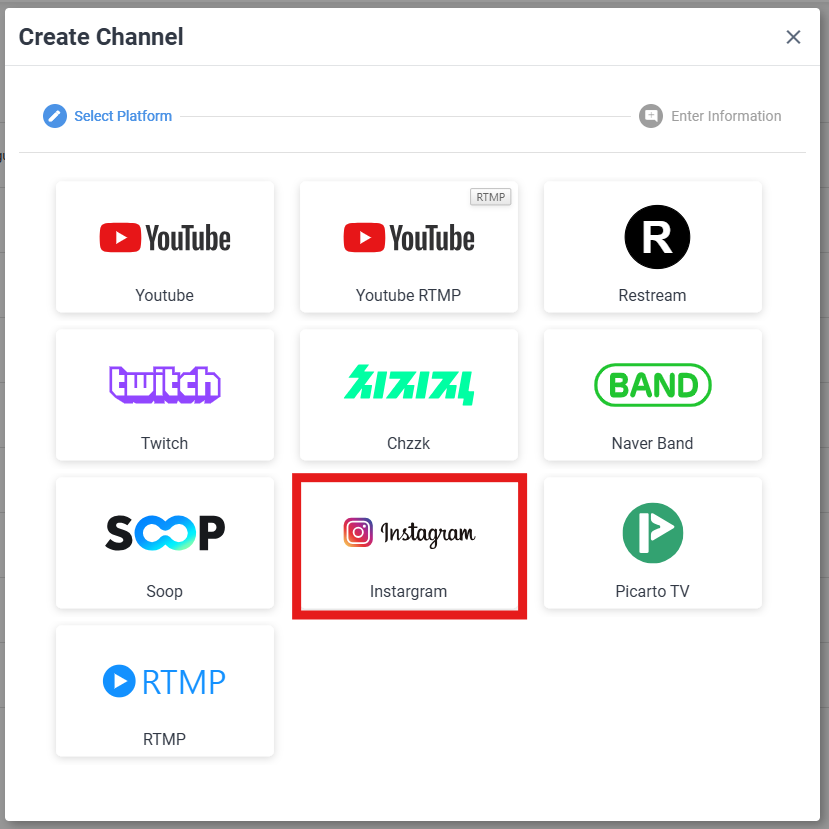

2. Select the Instagram option from the channel type list.

3. Access Instagram to check the URL and Stream Key.
* The location and button names may change if the website is updated.

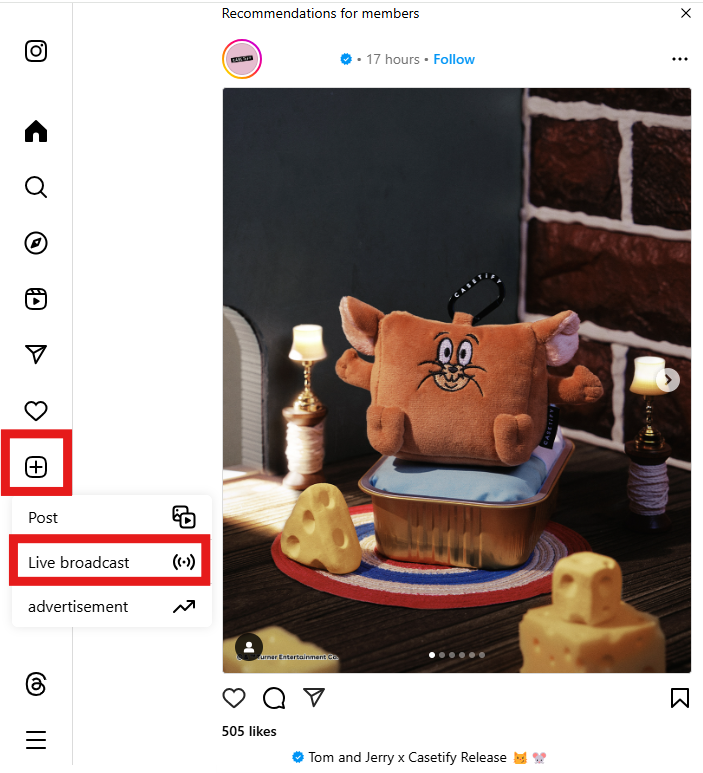

3-1. After logging into your account, click the + icon in the left menu bar and select the Live Broadcast button.

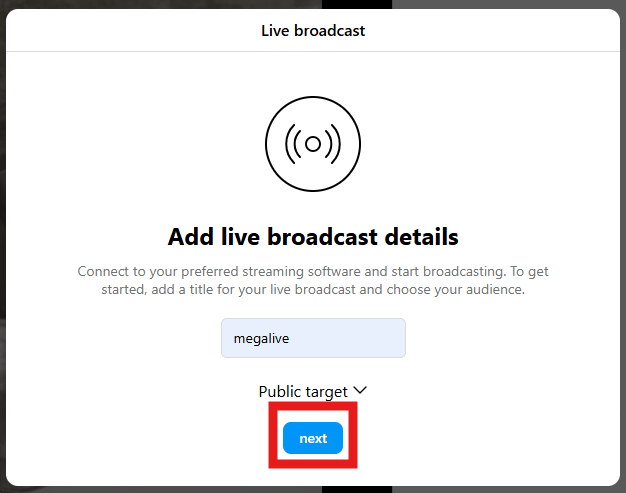

3-2. When the Live Broadcast Settings window appears, add a title for the broadcast, select the audience, and click the Next button.

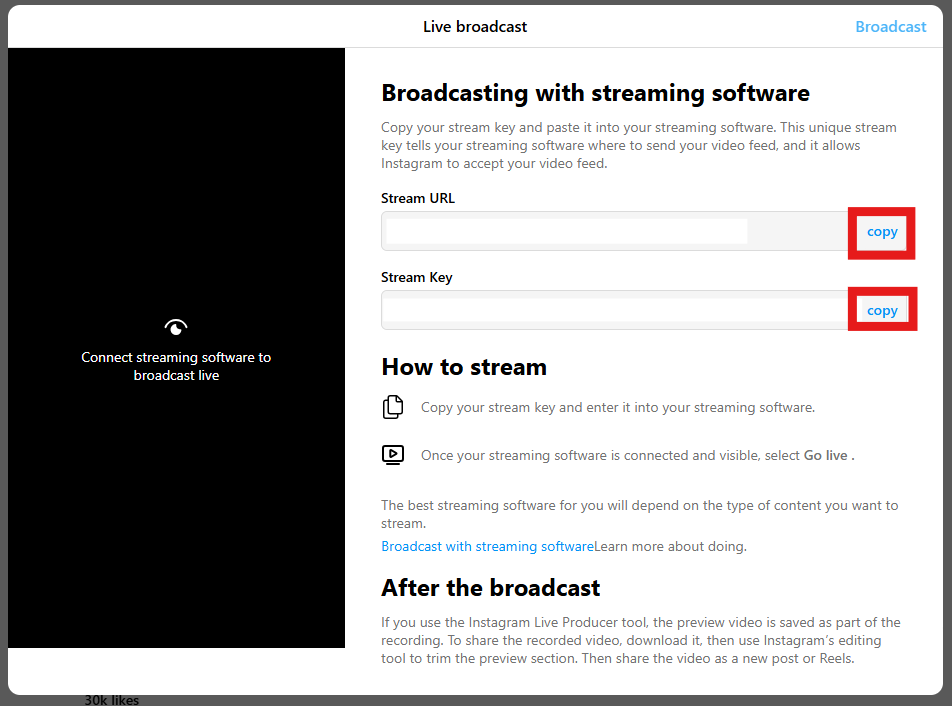

3-3. Once you enter the Live Broadcast screen, copy the Stream URL and Stream Key from the right side of the screen.

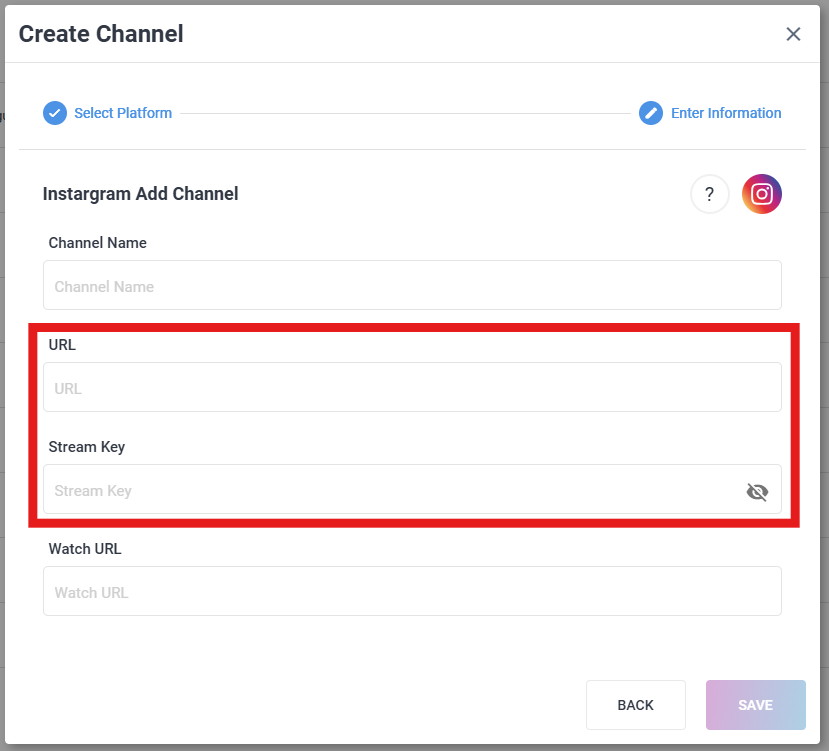

4. Enter the copied information into the URL and Stream Key fields in the Megalive Studio popup, then click the Save button.

[ S10 Device Connection ]

1. Turn on the S10 device and log in with your Megalive Studio account.

2. Select "Megalive OnAir."

3. Click the "+" button in the top right corner and select "Live Broadcast."

4. Choose the screen orientation (horizontal or vertical) and enter the broadcast title, description, schedule, and thumbnail in order.

5. Select the live broadcast you created.

6. Click the "Channel" button on the right sidebar and click the "Prepare" button for the channel platform where the live stream will be conducted.

* Click Settings > Encoding Settings, then configure the S10 Live settings as follow.

- Video codec : H.264
- Bitrate : 4000 Kbps
- FPS : 30 fps

7. Once "Prepare" changes to "Connected," click the "Start Live" button in the bottom left corner.

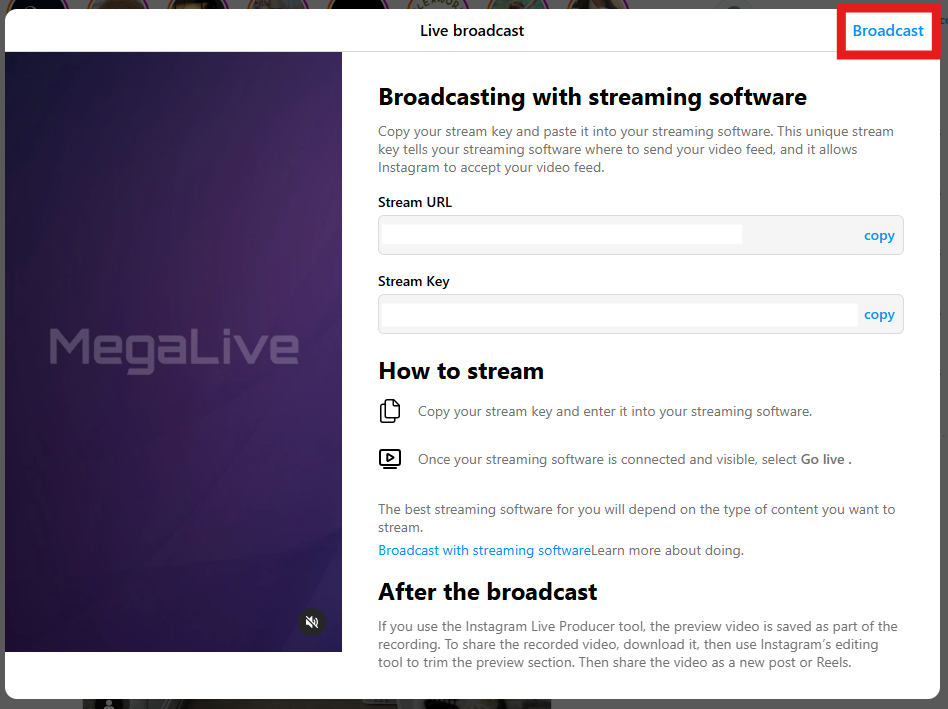

8. When the S10 device is connected and the live broadcast screen appears, click the Broadcast button at the top right of the Instagram screen to start the live stream.
