Chichijik Channel Setup Guide

[ Registering and Linking a Megalive Studio Channel ]

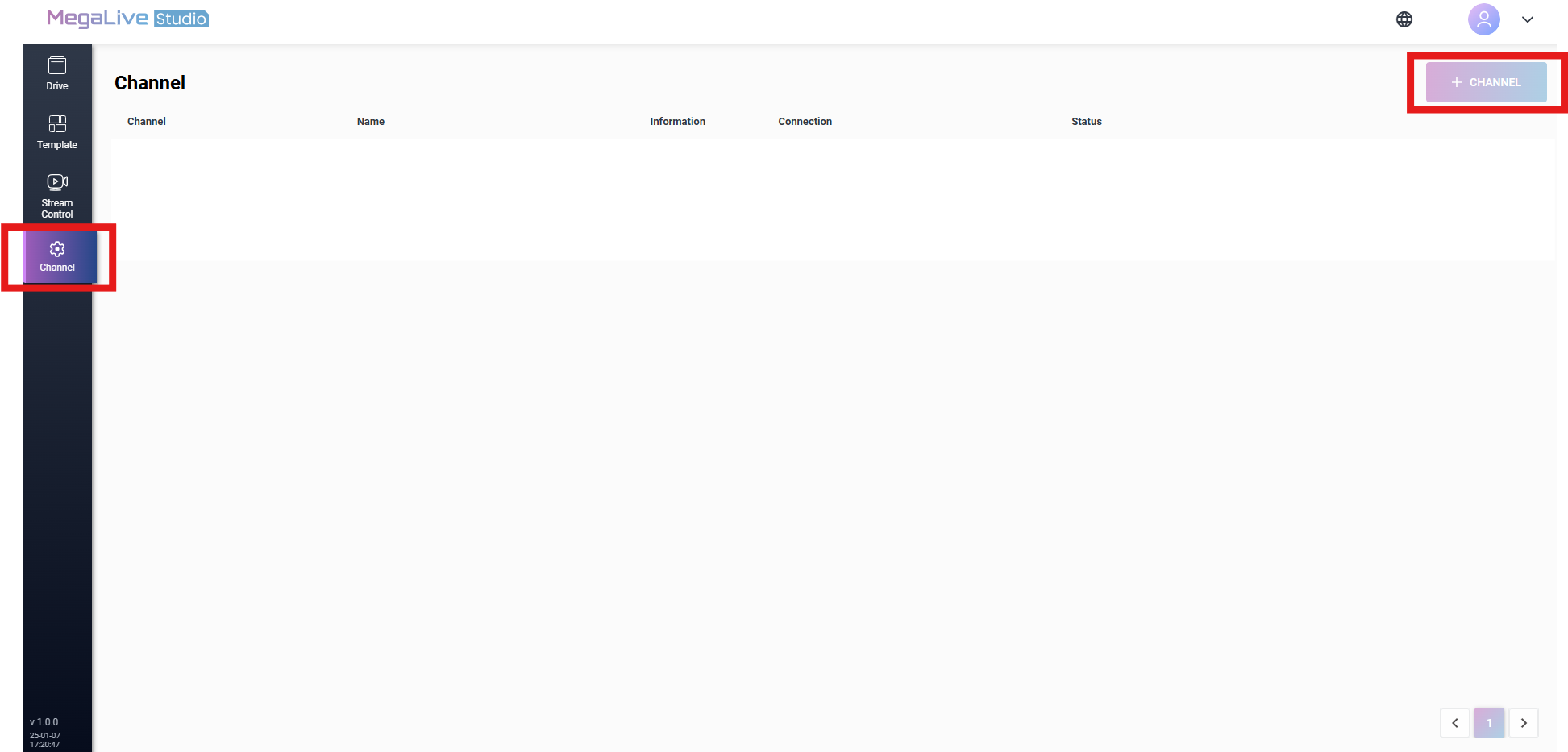

1. To register a streaming channel in Megalive Studio, click on the Channel button in the left-hand menu.
When the channel list appears, click the + Channel button in the top-right corner.

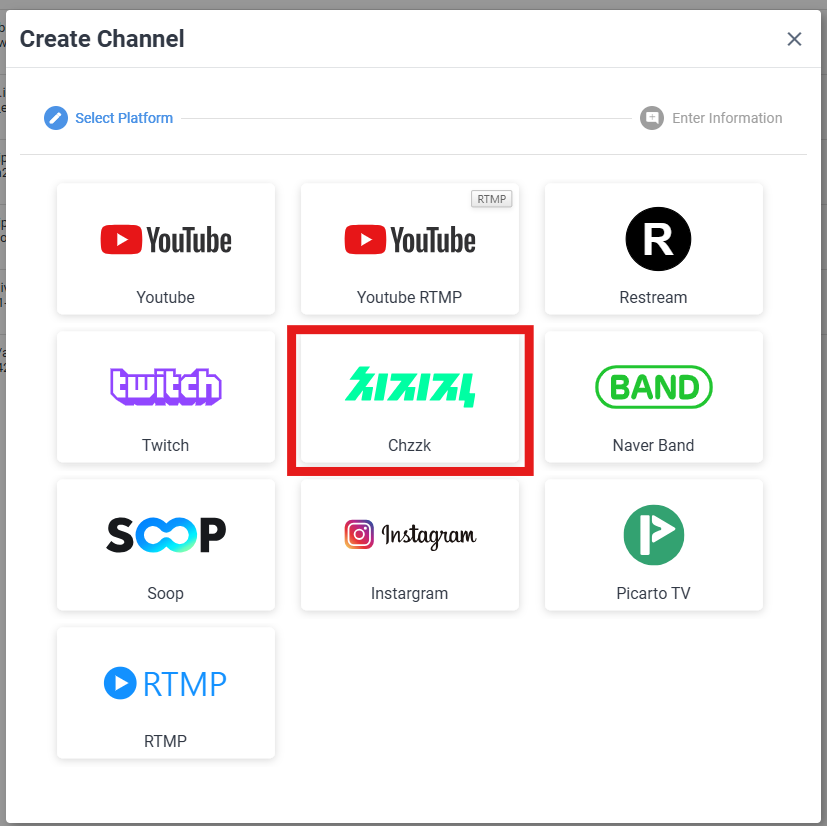

2. Select the Chzzk option from the channel type list.

3. Check the URL and stream key on the Chichijik site.
* The location and button names may change when the website is updated.

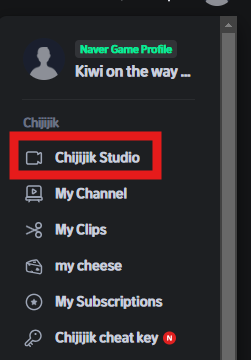

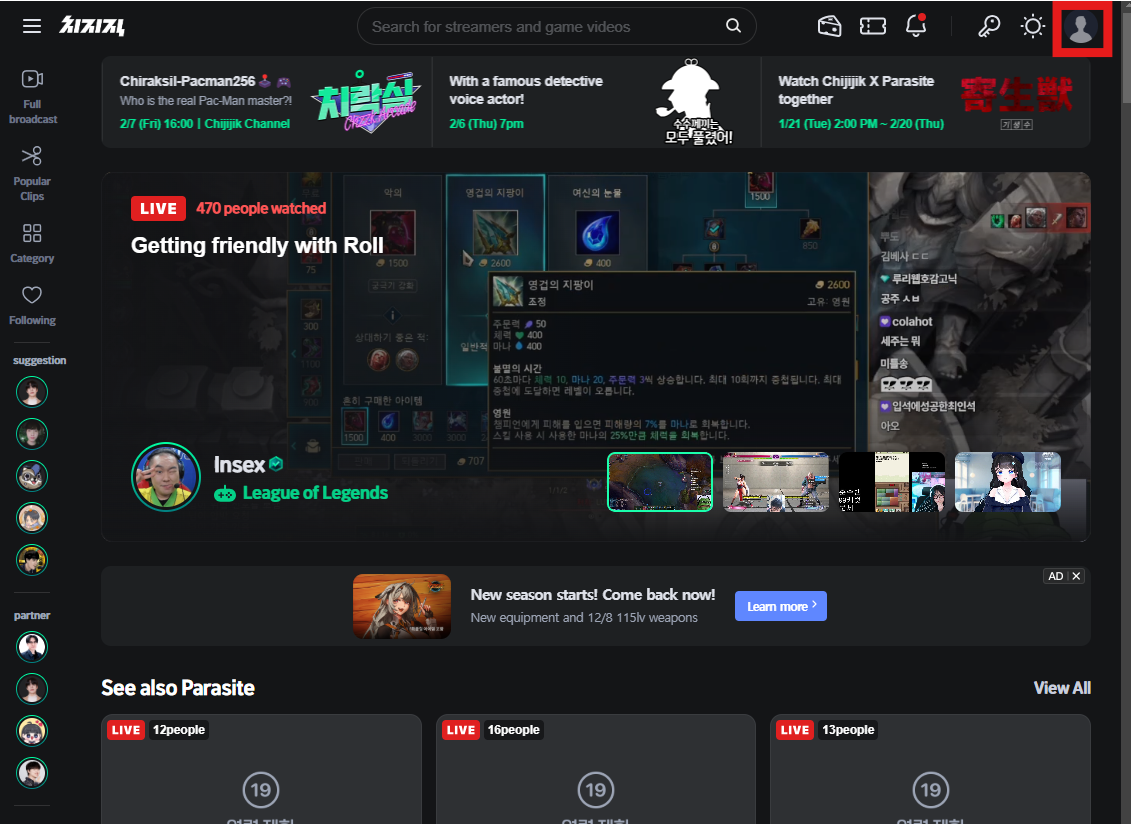

3-1. After logging into your account, select the account icon in the upper right corner, then click the Chichijik Studio button.

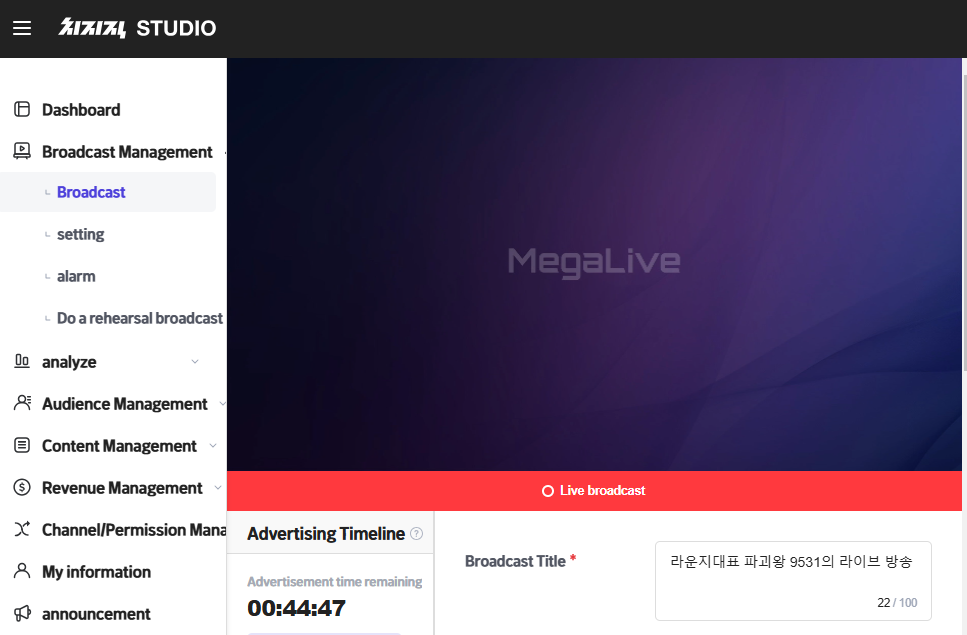

3-2. When the Chichijik Studio screen appears, click "Broadcast Management" > "Settings" in the left menu.

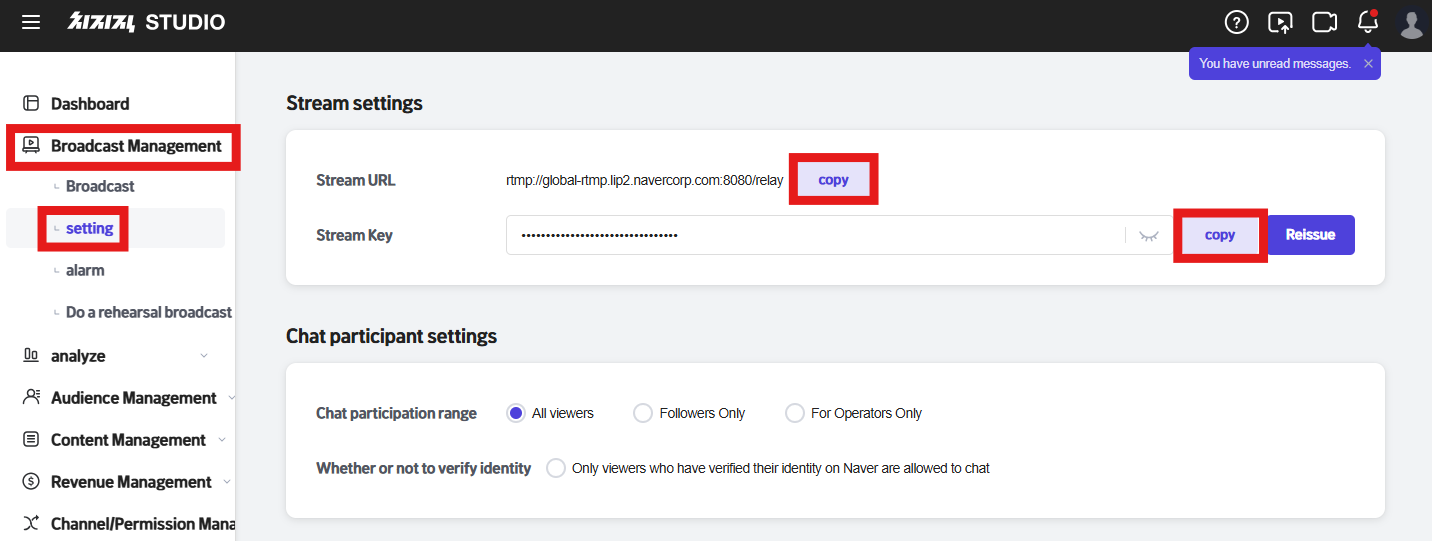

Copy the Stream URL and Stream Key from the Stream Settings section.

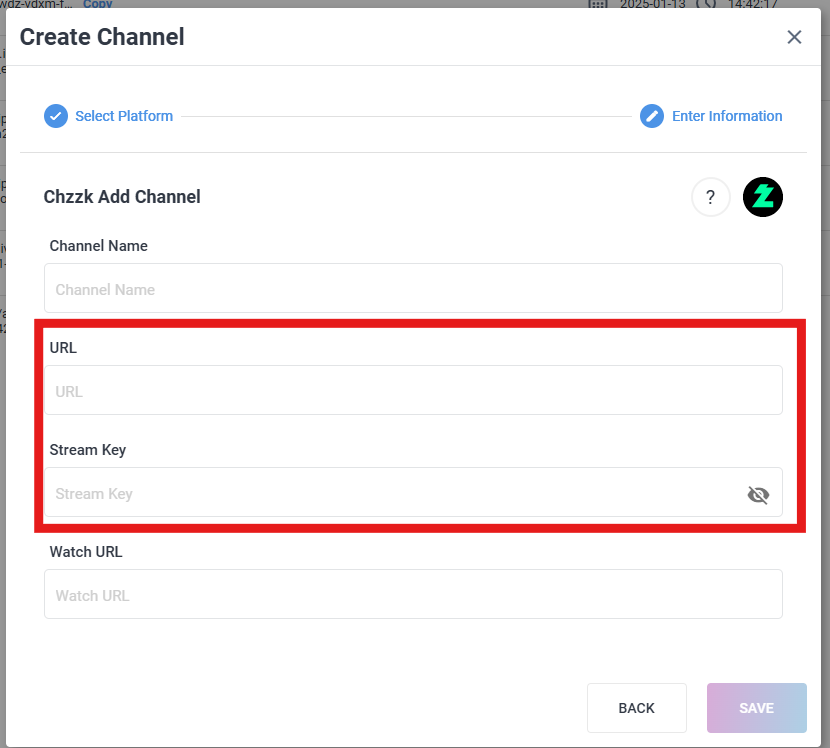

4. Enter the corresponding information into the URL and Stream Key fields in the Megalive Studio popup, then click the Save button.

[ S10 Device Connection ]

1. Turn on the S10 device and log in with your Megalive Studio account.

2. Select "Megalive OnAir."

3. Click the "+" button in the top right corner and select "Live Broadcast."

4. Choose the screen orientation (horizontal or vertical) and enter the broadcast title, description, schedule, and thumbnail in order.

5. Select the live broadcast you created.

6. Click the "Channel" button on the right sidebar and click the "Prepare" button for the channel platform where the live stream will be conducted.

* Click Settings > Encoding Settings, then configure the S10 Live settings as follow.

- Video codec : H.264
- Bitrate : 10000 Kbps
- FPS : 30 fps

7. Once "Prepare" changes to "Connected," click the "Start Live" button in the bottom left corner.

8. The S10 device will connect to the broadcast screen.
