RTMP Channel Setup Guide

[Registering Megalive Studio Channel and Connecting RTMP]

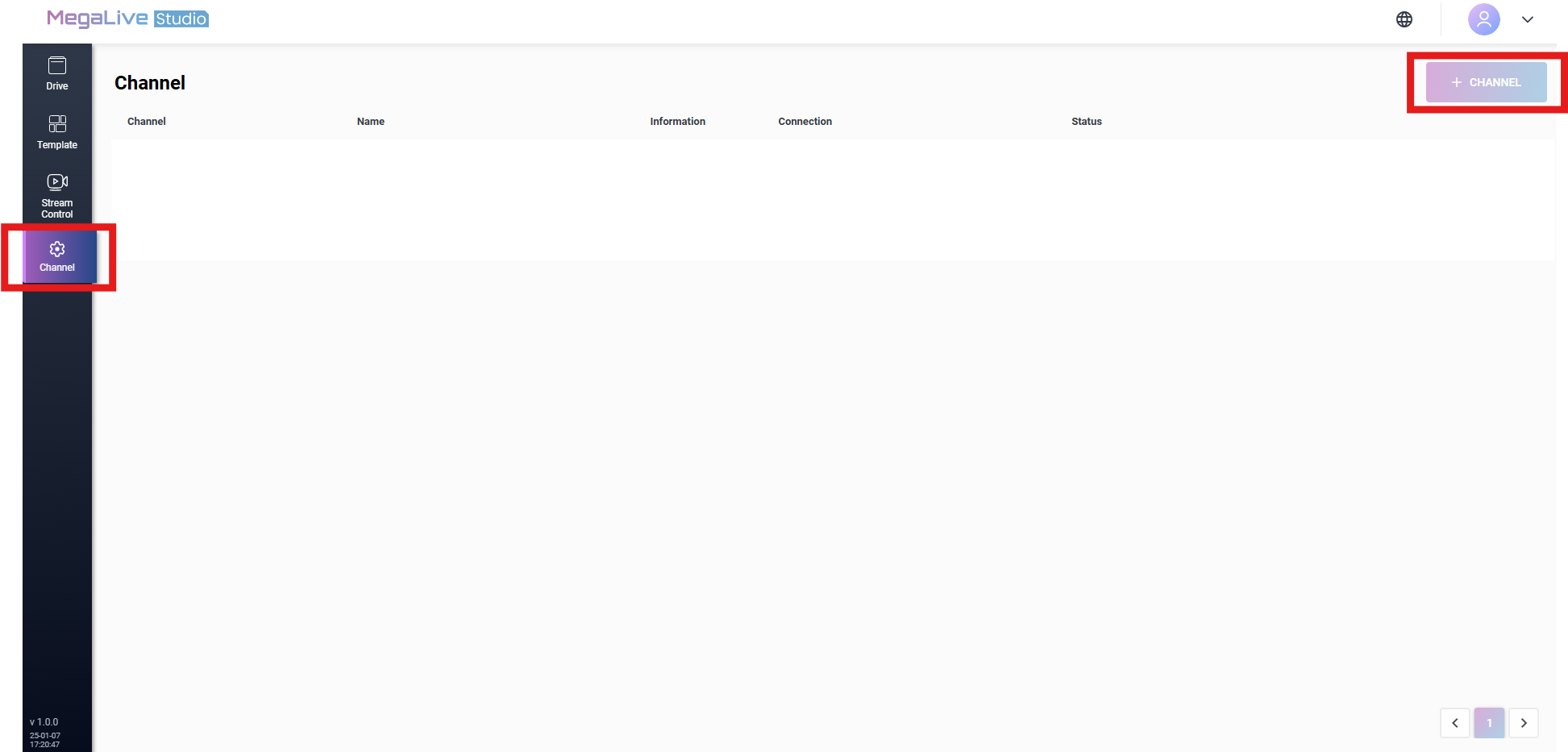

1. Registering a Streaming Channel in Megalive Studio

• On the left menu, select the Channel button.
• A list of channels will appear. Click the + Channel button located at the top-right corner.

2. Selecting RTMP

• From the displayed list of channel types, select the RTMP option.

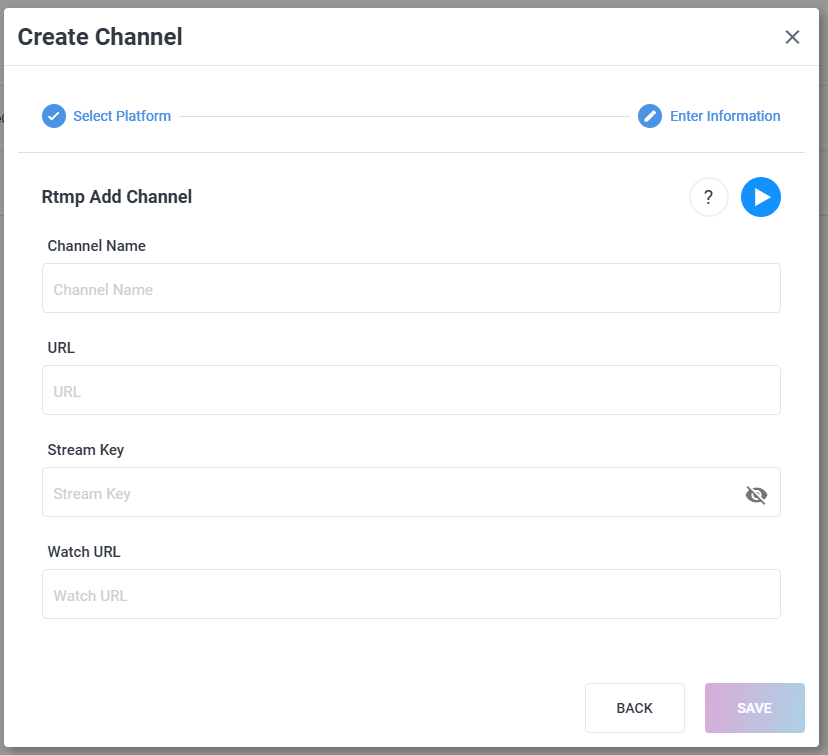

3. Enter the RTMP URL and Stream Key

• Input the RTMP URL and Stream Key provided by the platform you wish to connect to in the 'URL' and 'Stream Key' fields of the Megalive Studio channel creation window, then click the Save button.

[ S10 Device Connection ]

1. Turn on the S10 device and log in with your Megalive Studio account.

2. Select "Megalive OnAir."

3. Click the "+" button in the top right corner and select "Live Broadcast."

4. Choose the screen orientation (horizontal or vertical) and enter the broadcast title, description, schedule, and thumbnail in order.

5. Select the live broadcast you created.

6. Click the "Channel" button on the right sidebar and click the "Prepare" button for the channel platform where the live stream will be conducted.

7. Once "Prepare" changes to "Connected," click the "Start Live" button in the bottom left corner.

8. The live broadcast screen of the platform you want to connect to will be displayed on the S10 device.
