Twitch Channel Setup Guide

[ Registering and Linking a Megalive Studio Channel ]

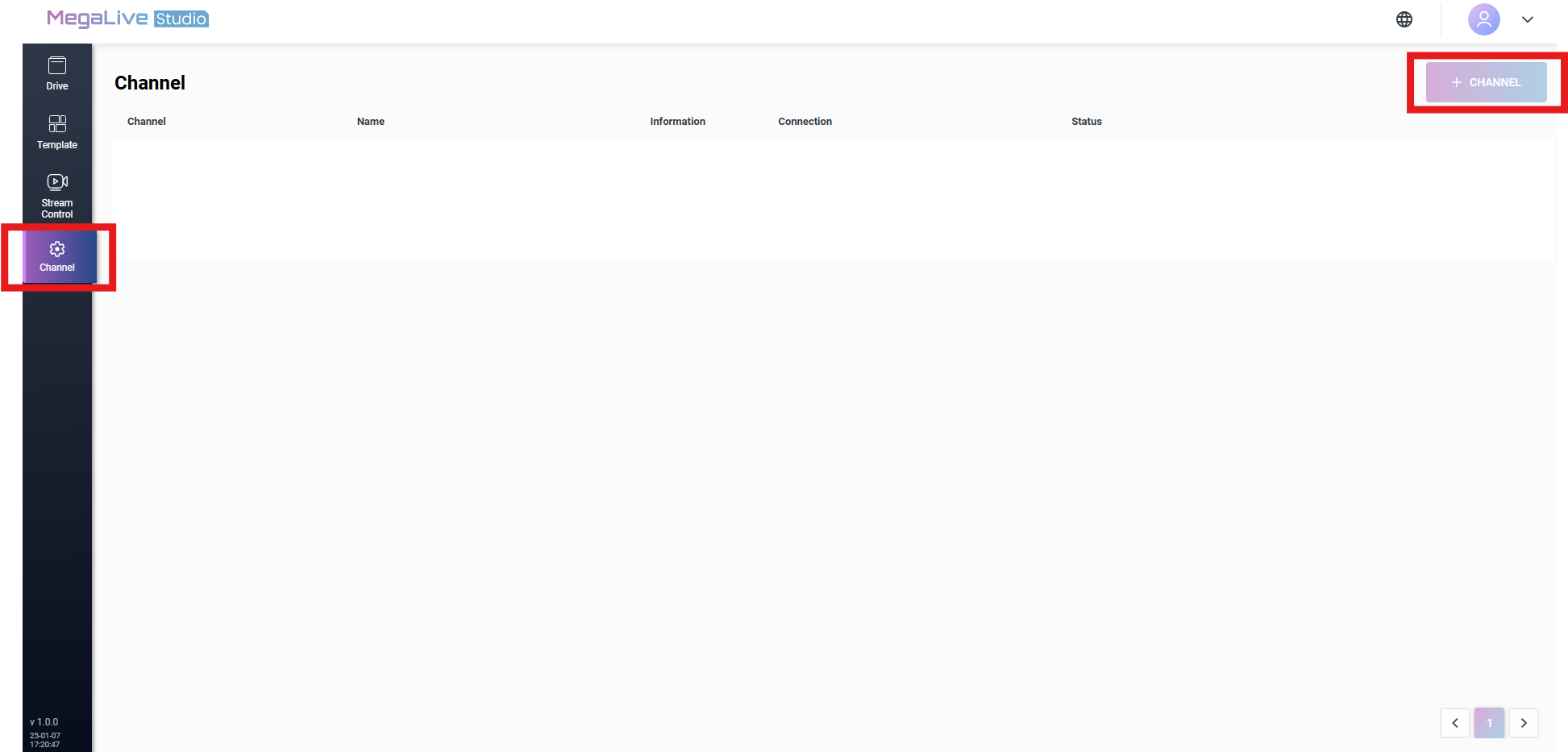

1. To register a streaming channel in Megalive Studio, click on the Channel button in the left-hand menu.
When the channel list appears, click the + Channel button in the top-right corner.

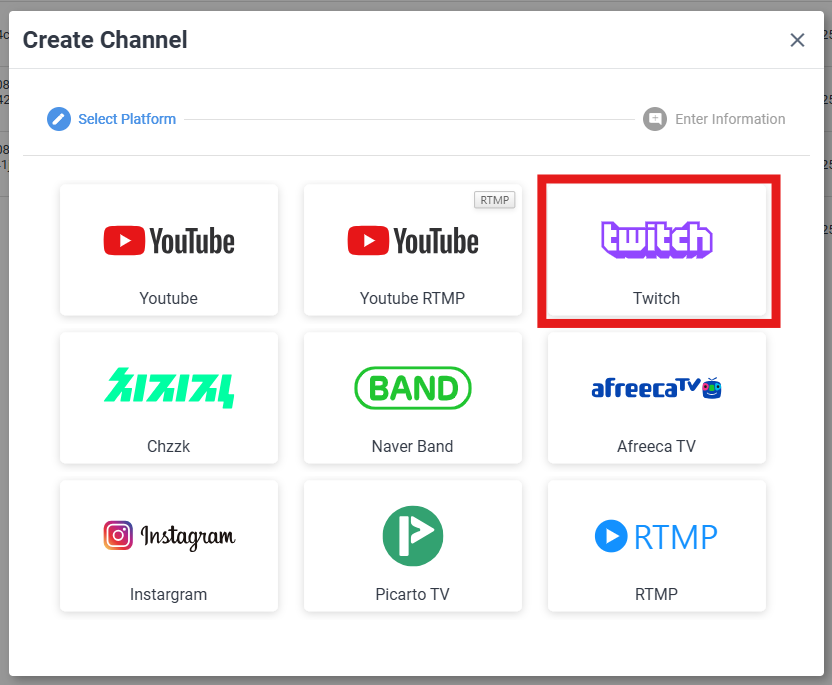

2. Select the Twitch option from the channel type list.

3. Check the URL and Stream Key from Twitch.
* Please note that button names or positions may change due to website updates.

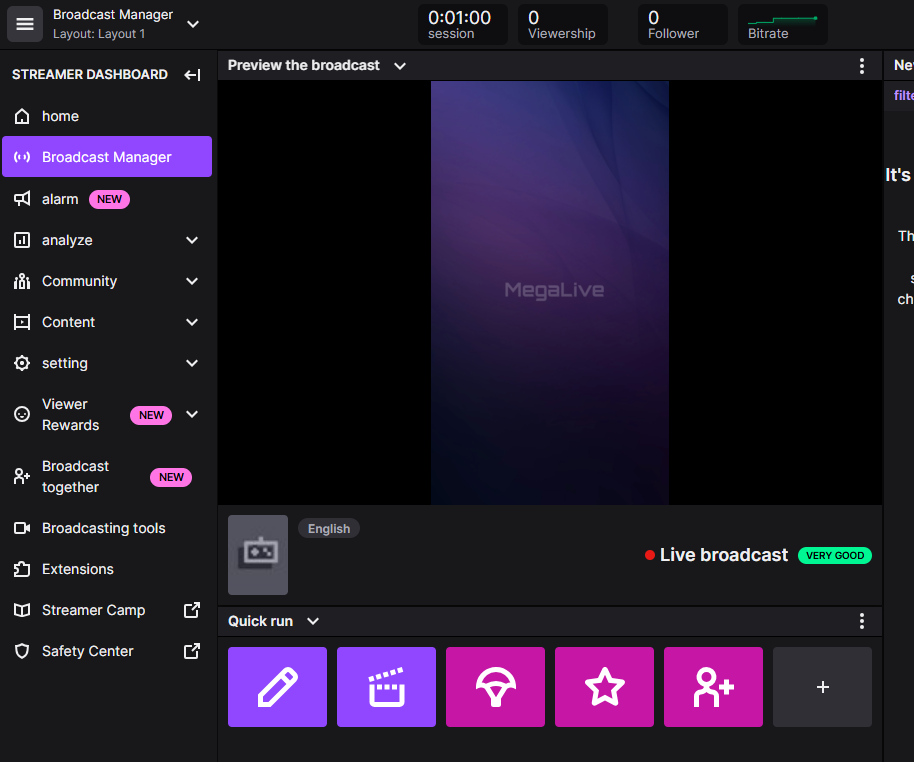

3-1. After logging into your account, click on the account icon in the top-right corner and select the Streamer Dashboard button.

3-2. When the Streamer Dashboard screen appears, navigate to Settings > Stream in the left menu.

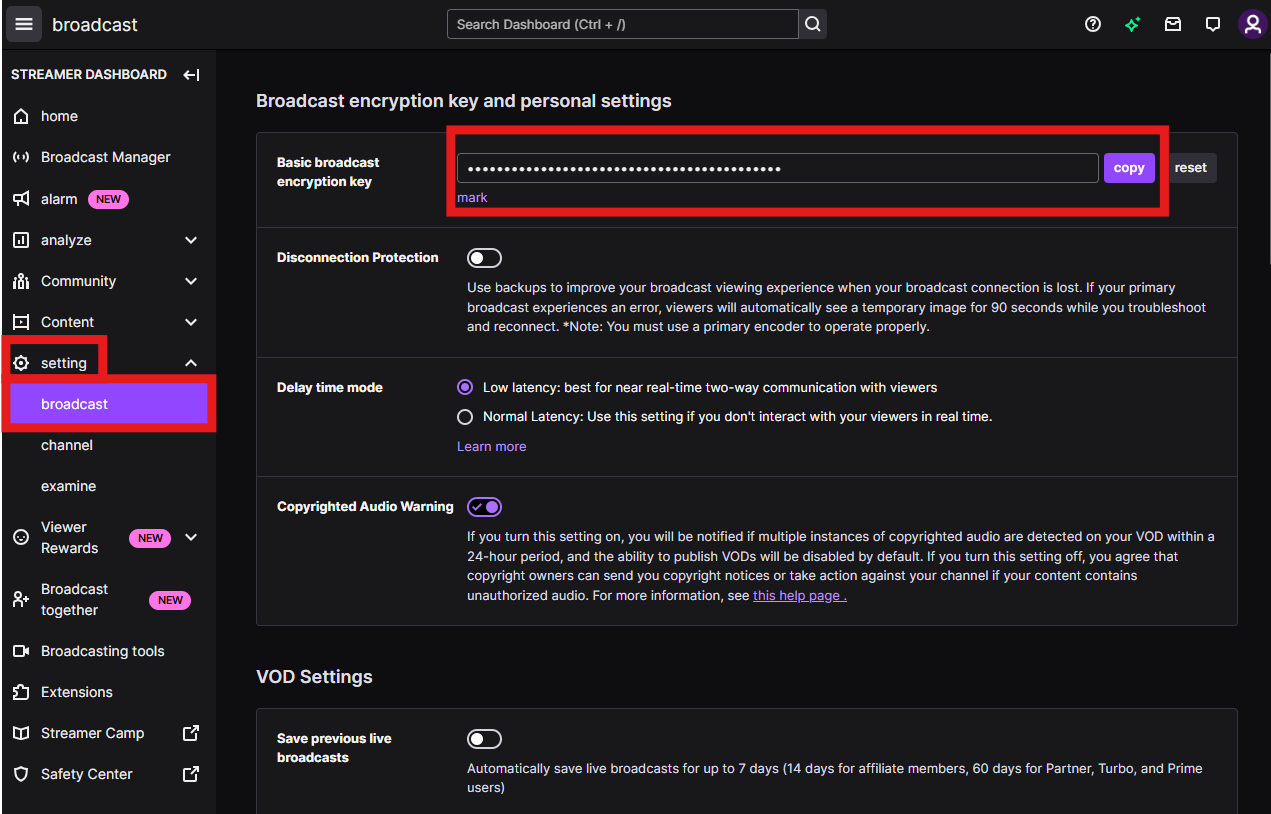

Copy the Primary Stream Key from the Broadcast Settings and Personal Settings section.

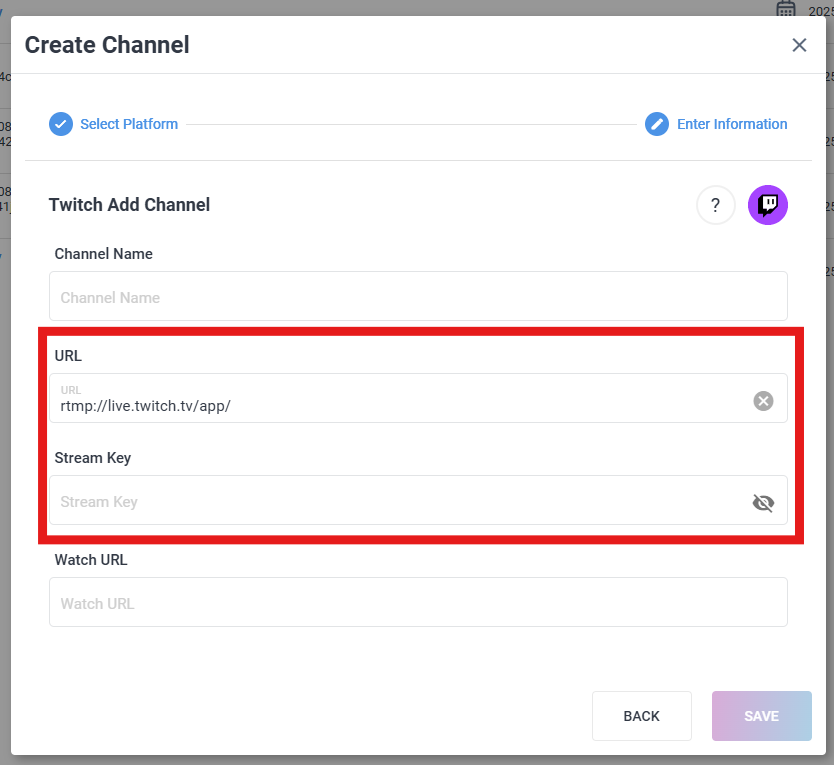

4. Enter the copied information into the Stream Key field of the Megalive Studio popup and click the Save button.
* Twitch URL : rtmp://live.twitch.tv/app/

[ S10 Device Connection ]

1. Turn on the S10 device and log in with your Megalive Studio account.

2. Select "Megalive OnAir."

3. Click the "+" button in the top right corner and select "Live Broadcast."

4. Choose the screen orientation (horizontal or vertical) and enter the broadcast title, description, schedule, and thumbnail in order.

5. Select the live broadcast you created.

6. Click the "Channel" button on the right sidebar and click the "Prepare" button for the channel platform where the live stream will be conducted.

* Click Settings > Encoding Settings, then configure the S10 Live settings as follow.

- Video codec : H.264
- Bitrate : 10000 Kbps
- FPS : 30 fps

7. Once "Prepare" changes to "Connected," click the "Start Live" button in the bottom left corner.

8. The S10 device will connect to the broadcast screen.
