YouTube RTMP Channel Setup Guide

[ Creating a YouTube Studio Channel ]

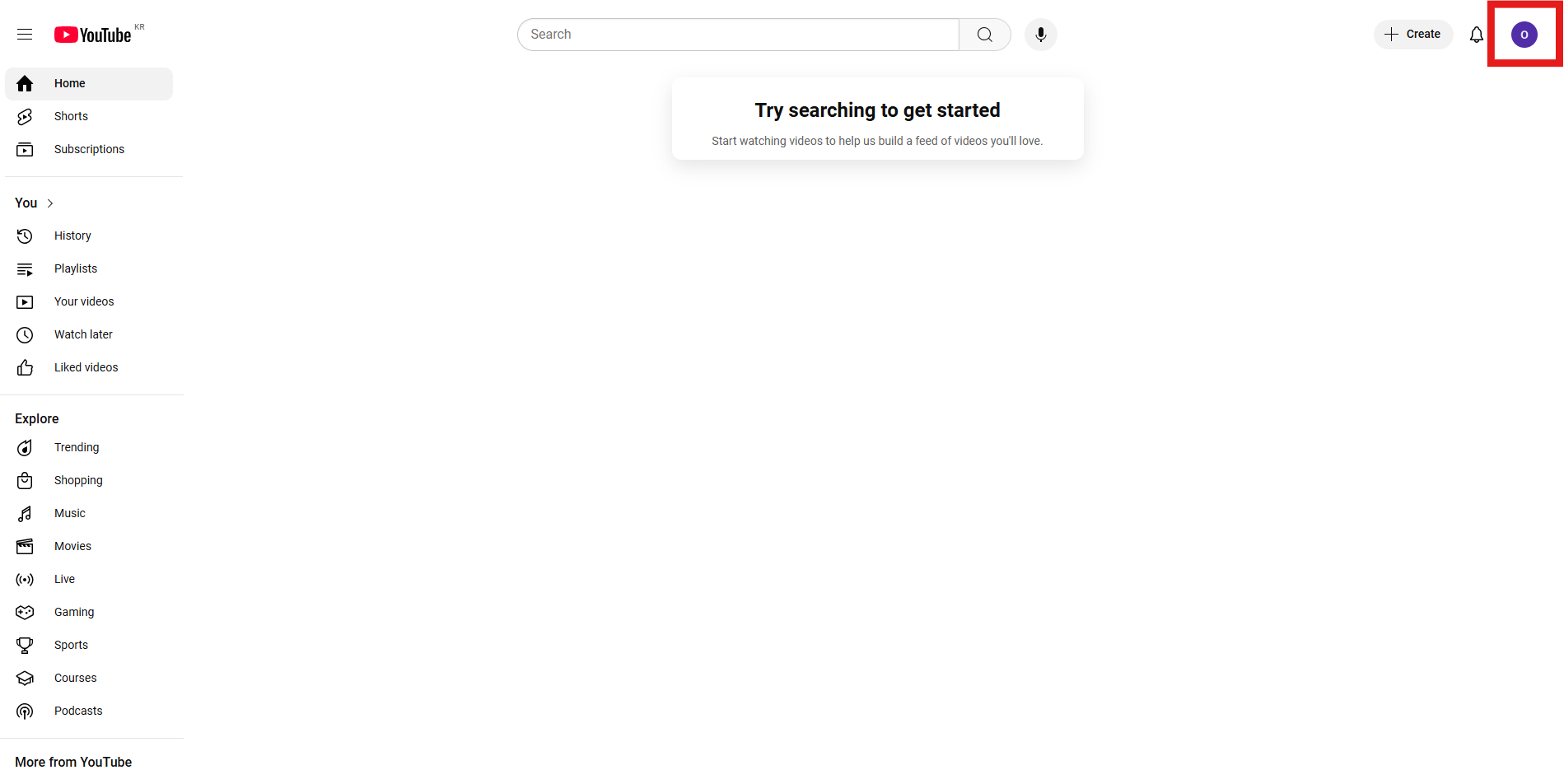

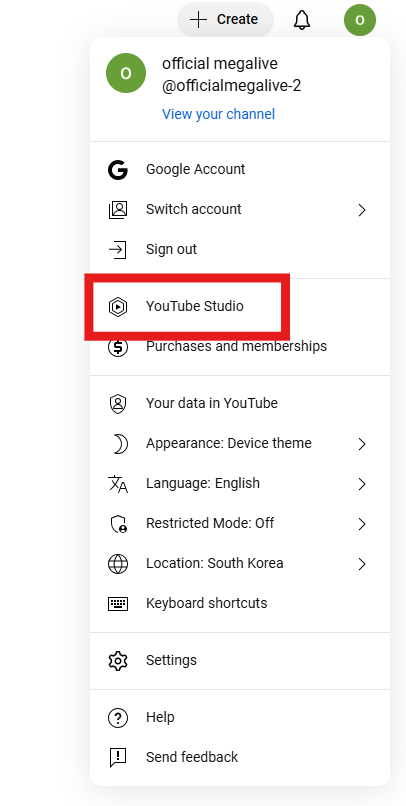

1. Log in to your account and click on the user account icon in the top-right corner.
From the dropdown menu, select YouTube Studio.

채널 생성 가이드 - youtube_0_영.png    채널 생성 가이드 - youtube_1_영.png

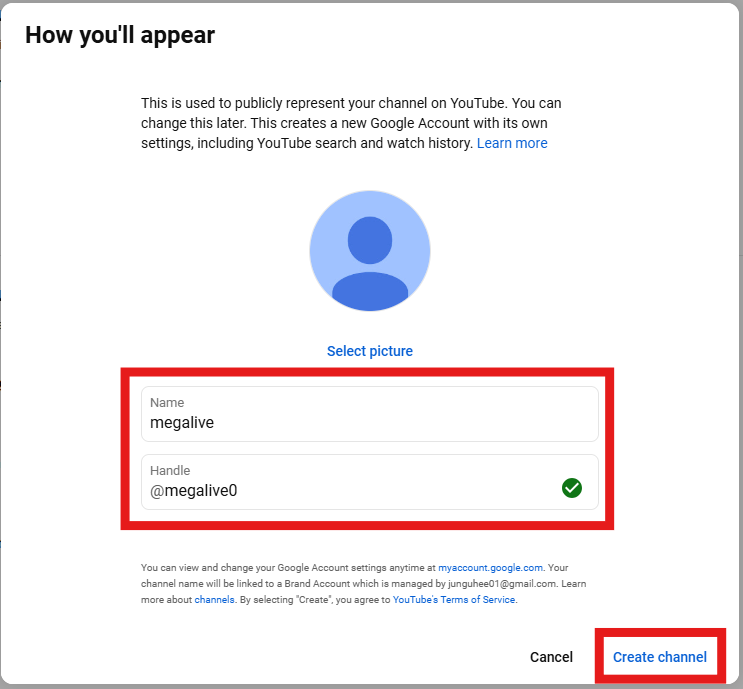

2. Enter your desired channel name and click Create Channel.

채널 생성 가이드 - youtube_2_영.png



3. Once in the Studio dashboard, select Content from the left-hand menu.
In the Channel Content screen, click the Live tab and press the Get Started button in the center of the screen.

채널 생성 가이드 - youtube_3_영.png

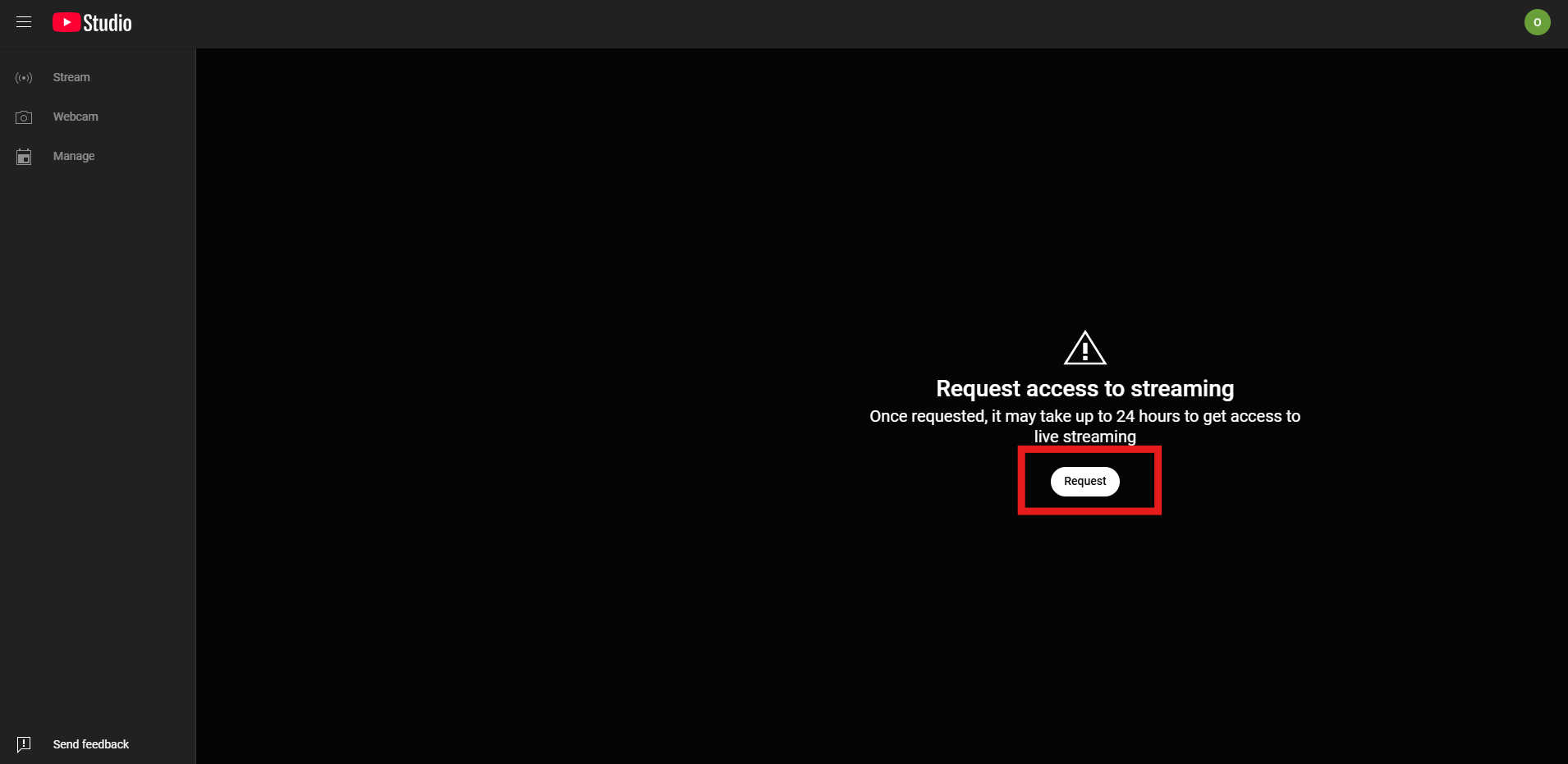

4. Enter the live streaming screen, and click the Request Access button displayed in the center.

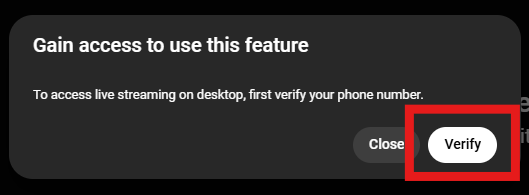

Complete phone number verification to enable streaming functionality.

채널 생성 가이드 - youtube_4_영.png 채널 생성 가이드 - youtube_5_영.png



After verification is complete, live streaming will become available after a 24-hour activation period.

채널 생성 가이드 - youtube_6_영.png






[ Registering and Linking a Megalive Studio Channel ]

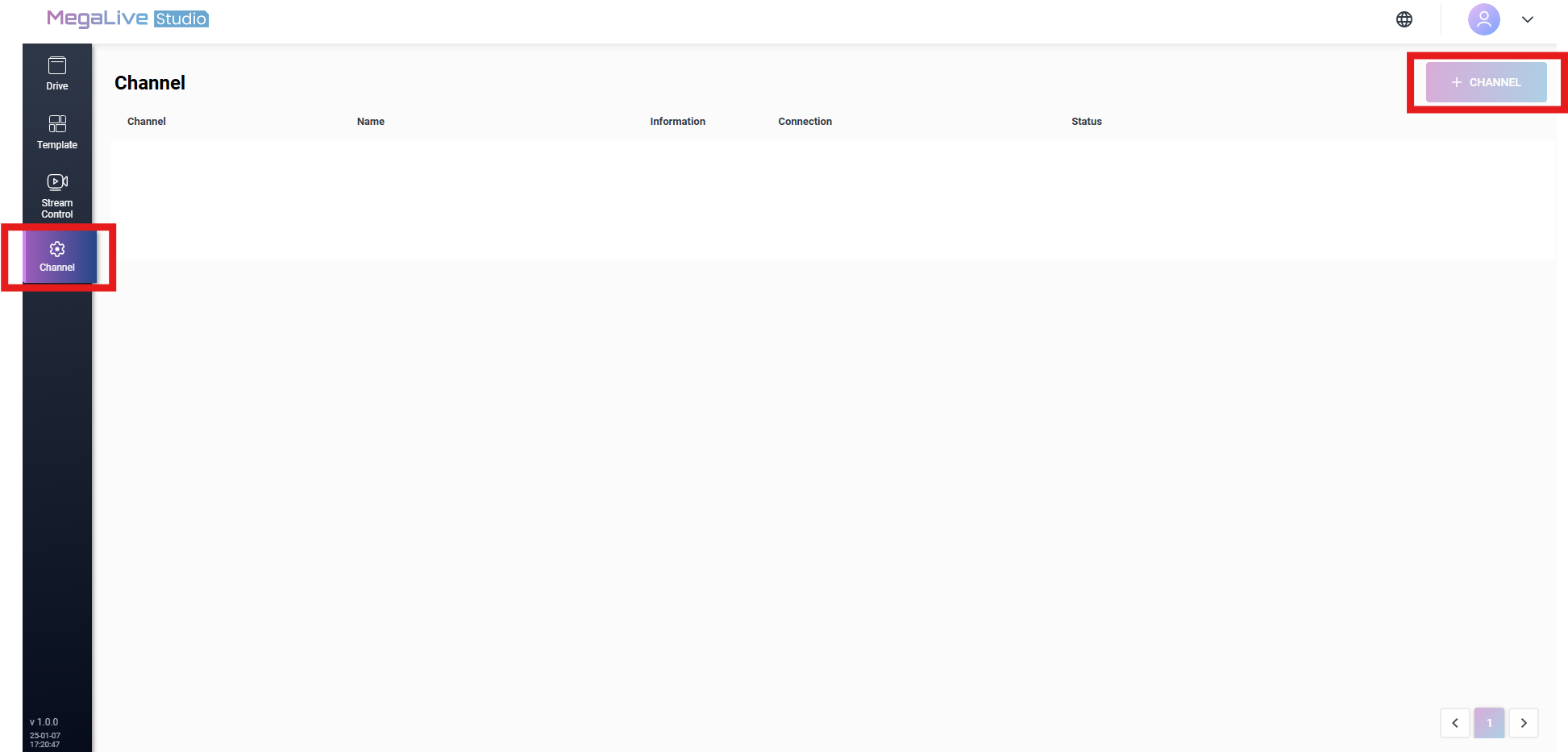

1. To register a streaming channel in Megalive Studio, click on the Channel button in the left-hand menu.
When the channel list appears, click the + Channel button in the top-right corner.

채널 생성 가이드 - youtube_0-4_영.png

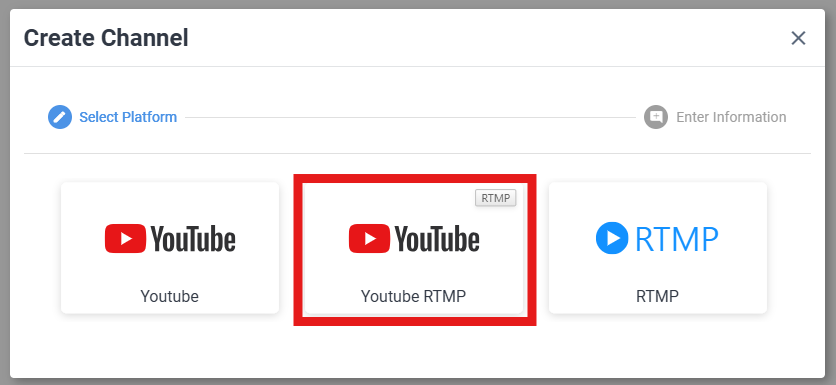

2. Select the YouTube RTMP option from the channel type list.

채널 생성 가이드 - youtube_0-5_영.png



3. Check the URL and Stream Key from YouTube.
* Please note that button names or positions may change due to website updates.

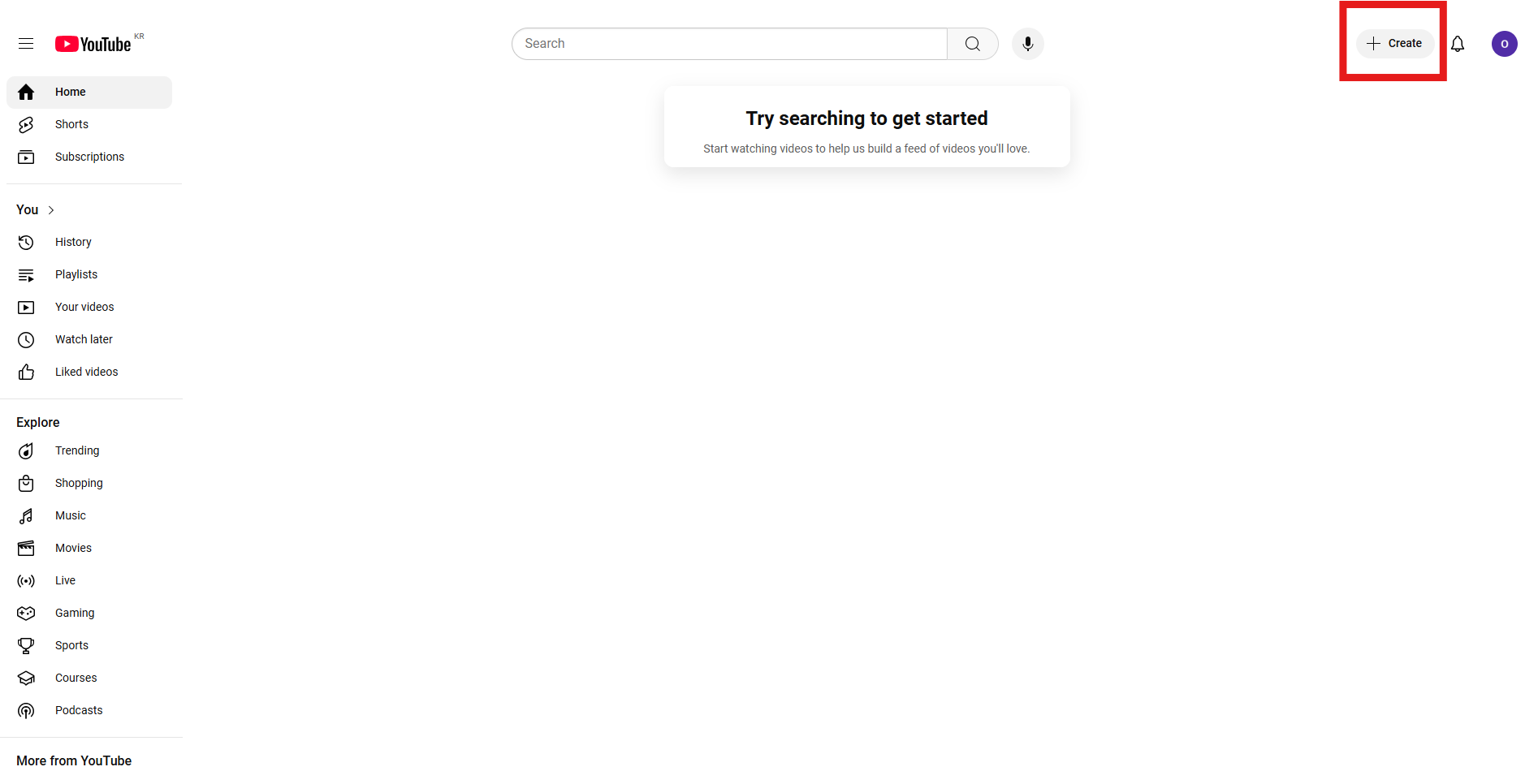

3-1. Log in to your account and click the + Create button in the top-right corner.
Select Go Live from the dropdown.

채널 생성 가이드 - youtube_0-1_영.png   채널 생성 가이드 - youtube_0-2_영.png

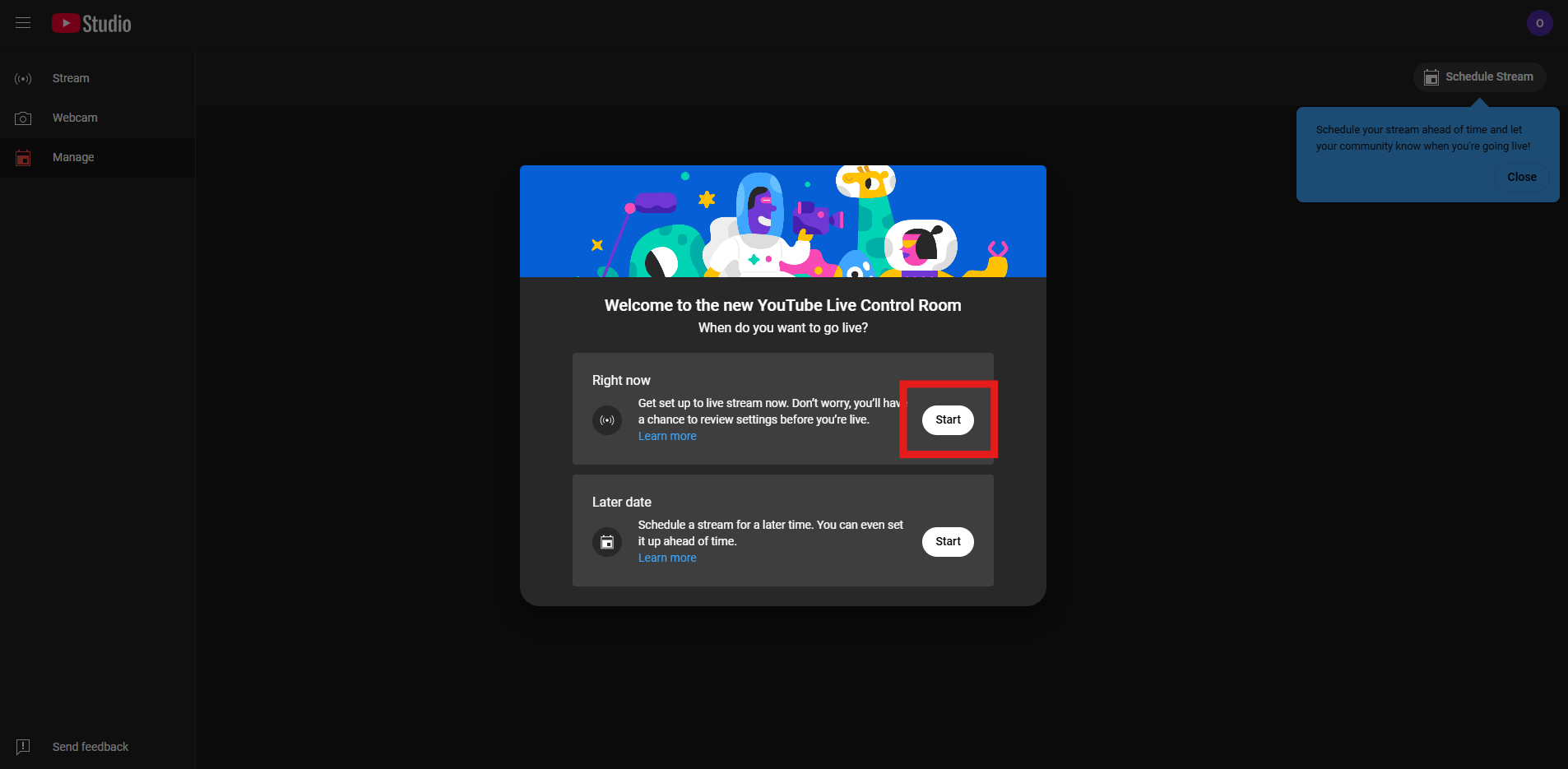

3-2. To start streaming immediately, click the Start button under the Now option.
* For scheduled streams, click Start under the Later option.

채널 생성 가이드 - youtube_7_영.png

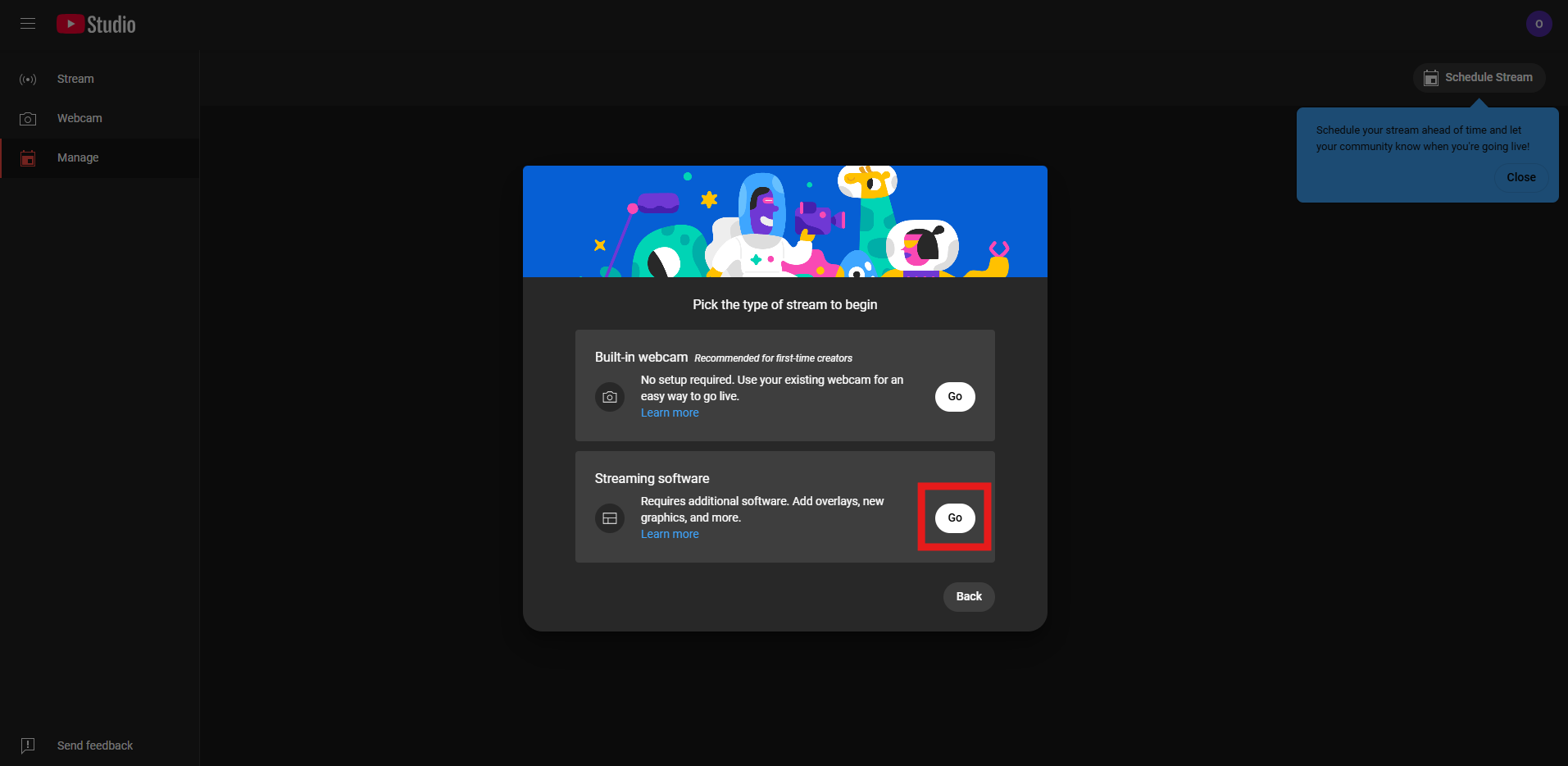

3-3. To connect with Megalive Studio, click the Go to Streaming Software button in the Streaming Software section.

채널 생성 가이드 - youtube_8_영.png

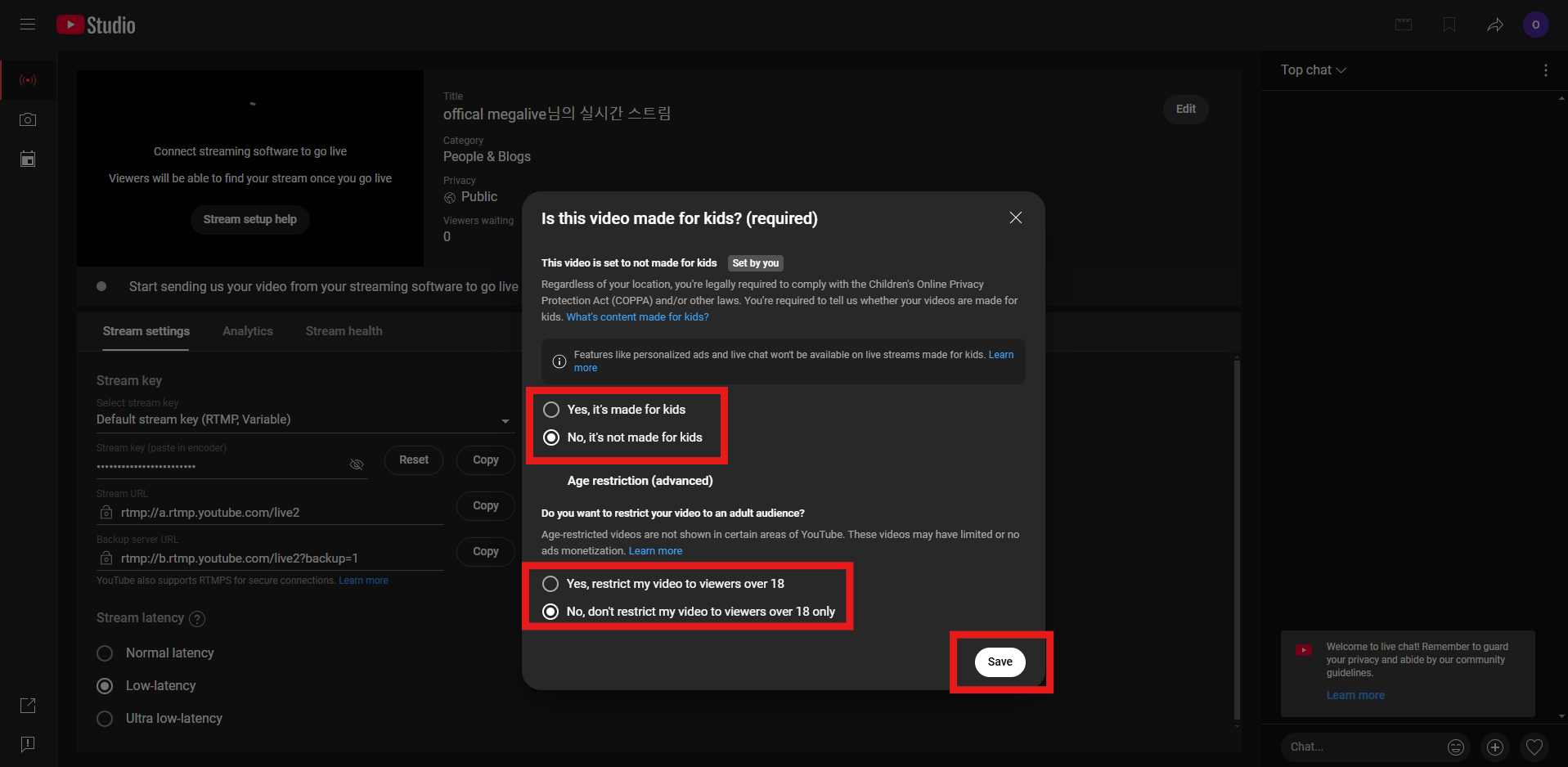

3-4. Select the appropriate audience type (e.g., child-friendly content) and click the Save button.

채널 생성 가이드 - youtube_9_영.png

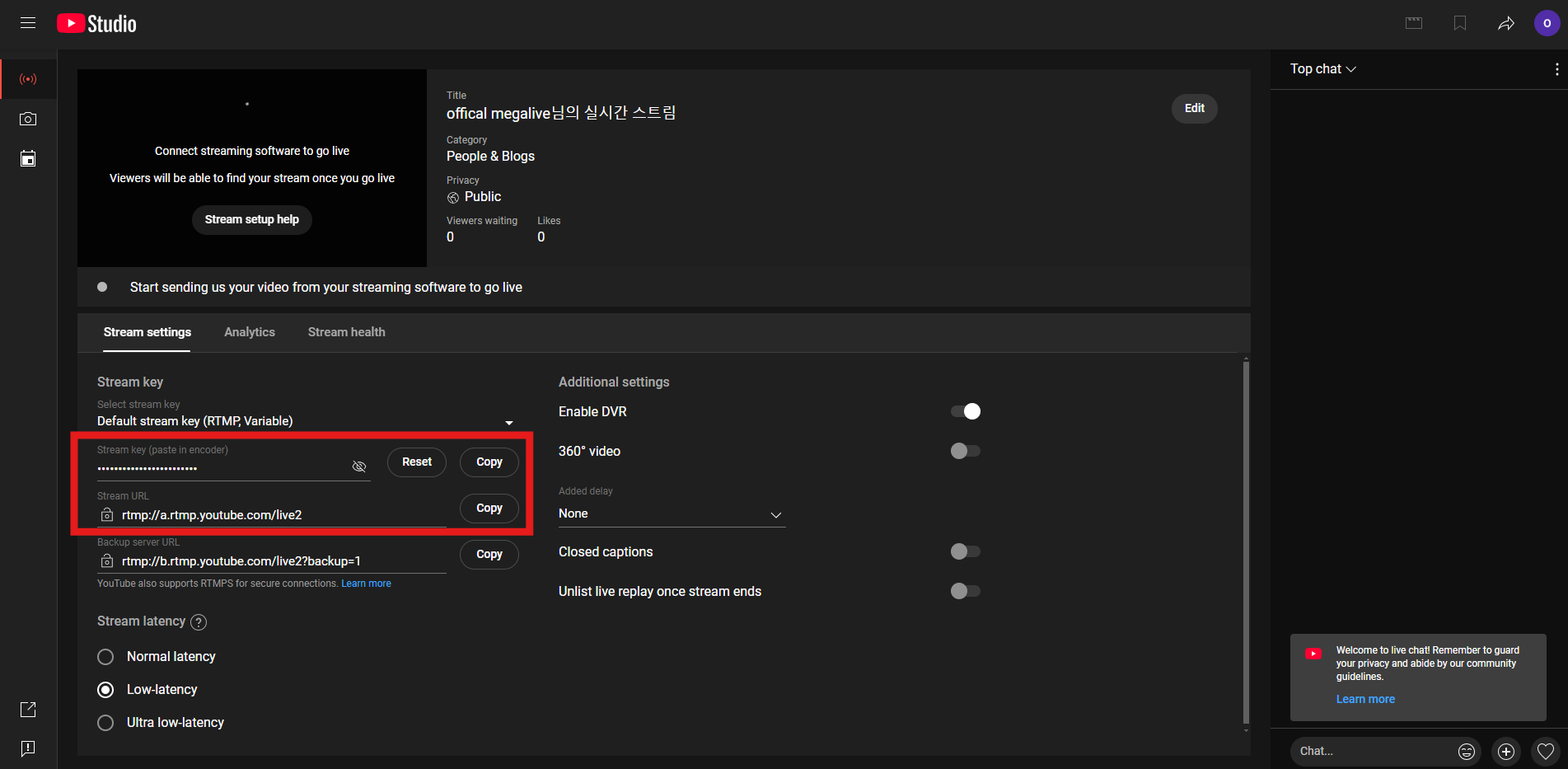

3-5. In the Streaming Settings tab, locate the Stream Key section to find the Stream URL and Stream Key.

채널 생성 가이드 - youtube_0-3_영.png

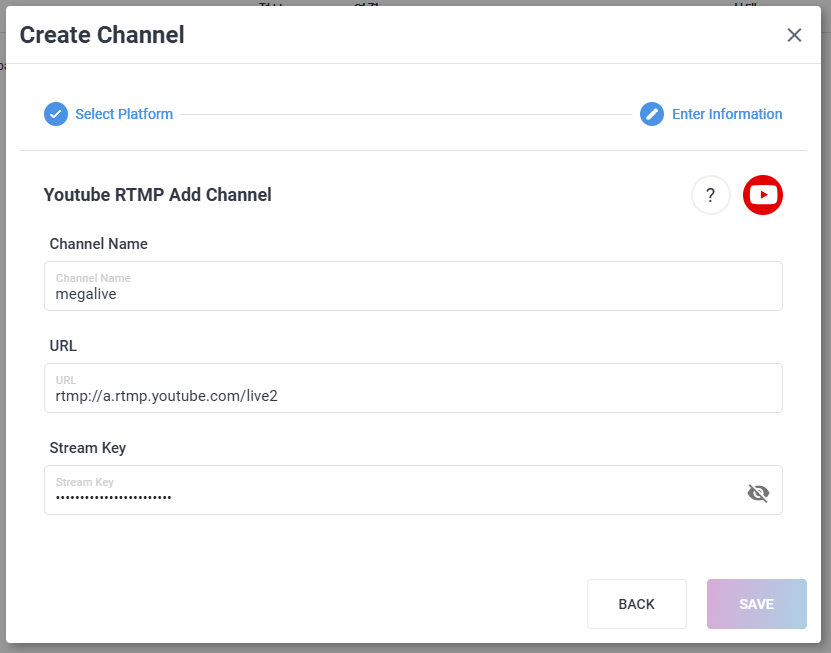

4. Enter the Stream URL and Stream Key into the Megalive Studio popup window,
then click the Save button.

채널 생성 가이드 - youtube_0-6_영.png






[ S10 Device Connection ]

1. Turn on the S10 device and log in with your Megalive Studio account.

2. Select "Megalive OnAir."

3. Click the "+" button in the top right corner and select "Live Broadcast."

4. Choose the screen orientation (horizontal or vertical) and enter the broadcast title, description, schedule, and thumbnail in order.

5. Select the live broadcast you created.

6. Click the "Channel" button on the right sidebar and click the "Prepare" button for the channel platform where the live stream will be conducted.

7. Once "Prepare" changes to "Connected," click the "Start Live" button in the bottom left corner.

8. The S10 device will connect to the YouTube live broadcast screen.
